编辑框外观信息更多...

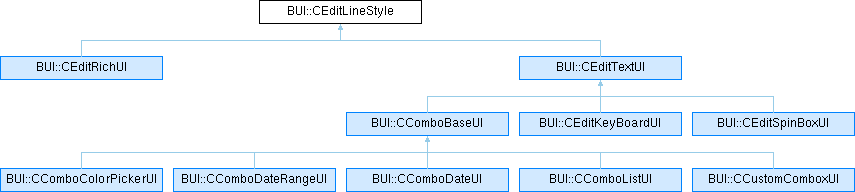

类 BUI::CEditLineStyle 继承关系图:

Public 成员函数
	CEditLineStyle (UINT textflags, RECT ppview, GFont *ppfont)

	~CEditLineStyle ()

virtual BOOL	GetRectTextView (RECT &rc)

virtual void	OnCheckContext ()

virtual void	OnChangeUpdate (UINT bits)

virtual void	UpdateIMEPosition (bool show)

void	SetEditEmptyTextTips (BeString str)

PaddingInfo	GetTextPadding () const

void	SetTextPadding (int dl, int dt, int dr, int db)

UINT	GetTextFlags () const

BOOL	IsTetxFlags (UINT flag) const

void	ModifyTextFlags (UINT style, UINT op=ADD_FLAGS)
	设置编辑框属性标志

BOOL	IsReadOnly () const

int	GetLimitMaxCount () const

void	SetLimitMaxCount (int c)

int	GetPercision () const

void	SetPercision (int p)

double	GetValueMax () const

void	SetValueMax (double va)

double	GetValueMin () const

void	SetValueMin (double va)

int	GetSelectRowCount () const

void	SetSelectRowCount (int c)

int	GetLastWrapWidth () const

void	SetLastWrapWidth (int w)

UINT	GetTextAlign () const

void	SetTextAlign (UINT align)

int	GetChangeCount () const

void	AddChangeCount (int c)

void	ResetChangeCount ()

BeString	GetTextTips () const

void	SetTextTips (BeString &str)

int	GetFontHeight () const

void	SetLineSpacingHeight (int size)

int	GetLineSpacingHeight () const

int	GetDefaultLineHeight () const

GFont *	GetPublicFont ()

void	ShellLineAttribute (const BeString &szName, const BeString &szText)
	命令控制和属性设置接口

Public 属性
BeString	m_tipsText

PaddingInfo	m_textPadding

AtomicLock	m_mutex_running

UINT	m_textFlag

int	m_nLineSpaceing

int	m_nMaxLimitCount

int	m_nPrecision

double	m_nMinValue

double	m_nMaxValue

SIZE	m_roundSize

int	m_nSelectCount

int	m_nChangeCount

UINT	m_horAlign

RECT *	m_pRcClient

GFont **	m_ppfont

int	m_nHexGroupCount

int	m_last_warp_width

int	m_nUndoMaxSize

int	m_lead_width

std::deque< UnDoRecord >	m_undo_

std::deque< UnDoRecord >	m_undo_back_

详细描述

编辑框外观信息

构造及析构函数说明

◆ CEditLineStyle()

BUI::CEditLineStyle::CEditLineStyle	(	UINT	textflags,
		RECT *	ppview,
		GFont **	ppfont
	)

◆ ~CEditLineStyle()

BUI::CEditLineStyle::~CEditLineStyle ( )

成员函数说明

◆ AddChangeCount()

void BUI::CEditLineStyle::AddChangeCount ( int c )

◆ GetChangeCount()

int BUI::CEditLineStyle::GetChangeCount ( ) const

◆ GetDefaultLineHeight()

int BUI::CEditLineStyle::GetDefaultLineHeight ( ) const

◆ GetFontHeight()

int BUI::CEditLineStyle::GetFontHeight ( ) const

◆ GetLastWrapWidth()

int BUI::CEditLineStyle::GetLastWrapWidth ( ) const

◆ GetLimitMaxCount()

int BUI::CEditLineStyle::GetLimitMaxCount ( ) const

◆ GetLineSpacingHeight()

int BUI::CEditLineStyle::GetLineSpacingHeight ( ) const

◆ GetPercision()

int BUI::CEditLineStyle::GetPercision ( ) const

◆ GetPublicFont()

GFont * BUI::CEditLineStyle::GetPublicFont ( )

◆ GetRectTextView()

virtual BOOL BUI::CEditLineStyle::GetRectTextView ( RECT & rc )

virtual

被 BUI::CEditRichUI , 以及 BUI::CEditTextUI 重载.

◆ GetSelectRowCount()

int BUI::CEditLineStyle::GetSelectRowCount ( ) const

◆ GetTextAlign()

UINT BUI::CEditLineStyle::GetTextAlign ( ) const

◆ GetTextFlags()

UINT BUI::CEditLineStyle::GetTextFlags ( ) const

◆ GetTextPadding()

PaddingInfo BUI::CEditLineStyle::GetTextPadding ( ) const

◆ GetTextTips()

BeString BUI::CEditLineStyle::GetTextTips ( ) const

◆ GetValueMax()

double BUI::CEditLineStyle::GetValueMax ( ) const

◆ GetValueMin()

double BUI::CEditLineStyle::GetValueMin ( ) const

◆ IsReadOnly()

BOOL BUI::CEditLineStyle::IsReadOnly ( ) const

◆ IsTetxFlags()

BOOL BUI::CEditLineStyle::IsTetxFlags ( UINT flag ) const

◆ ModifyTextFlags()

void BUI::CEditLineStyle::ModifyTextFlags	(	UINT	style,
		UINT	op = `ADD_FLAGS`
	)

设置编辑框属性标志

参数

style	取InputTextFlags组合值
op	ADD_FLAGS(添加属性) REMOVE_FLAGS(删除属性)

◆ OnChangeUpdate()

virtual void BUI::CEditLineStyle::OnChangeUpdate ( UINT bits )

virtual

被 BUI::CEditRichUI 重载.

◆ OnCheckContext()

virtual void BUI::CEditLineStyle::OnCheckContext ( )

virtual

被 BUI::CEditSpinBoxUI 重载.

◆ ResetChangeCount()

void BUI::CEditLineStyle::ResetChangeCount ( )

◆ SetEditEmptyTextTips()

void BUI::CEditLineStyle::SetEditEmptyTextTips ( BeString str )

◆ SetLastWrapWidth()

void BUI::CEditLineStyle::SetLastWrapWidth ( int w )

◆ SetLimitMaxCount()

void BUI::CEditLineStyle::SetLimitMaxCount ( int c )

◆ SetLineSpacingHeight()

void BUI::CEditLineStyle::SetLineSpacingHeight ( int size )

◆ SetPercision()

void BUI::CEditLineStyle::SetPercision ( int p )

◆ SetSelectRowCount()

void BUI::CEditLineStyle::SetSelectRowCount ( int c )

◆ SetTextAlign()

void BUI::CEditLineStyle::SetTextAlign ( UINT align )

◆ SetTextPadding()

void BUI::CEditLineStyle::SetTextPadding	(	int	dl,
		int	dt,
		int	dr,
		int	db
	)

◆ SetTextTips()

void BUI::CEditLineStyle::SetTextTips ( BeString & str )

◆ SetValueMax()

void BUI::CEditLineStyle::SetValueMax ( double va )

◆ SetValueMin()

void BUI::CEditLineStyle::SetValueMin ( double va )

◆ ShellLineAttribute()

void BUI::CEditLineStyle::ShellLineAttribute	(	const BeString &	szName,
		const BeString &	szText
	)

命令控制和属性设置接口

szName属性	szText语法格式
text-align 文本对齐方式	text-align="left,vcenter" 取值left,right,center,top,bottom,vcenter的组合
text-padding 文本内边缩进	text-padding="10,10,10,10"
empty-tips 空内容时的提示文本	empty-tips="请输入授权码"
input-range 数值输入范围，超出范围输入无响应	input-range="0,100"
input-min 数值输入最小值，超出范围输入无响应	input-min="0"
input-max 数值输入最大值，超出范围输入无响应	input-max="100"
input-type 输入类型控制	"-"号前缀表示删除
	Decimal: Allow '0','1','2','3','4','5','6','7','8','9','+','-'
	Hexadecimal: Allow '0','1','2','3','4','5','6','7','8','9','A','B','C','D','E','F','a','b','c','d','e','f'
	Octal: Allow '0','1','2','3','4','5','6','7'
	Binary: Allow '0','1'
	Uppercase: Turn 'a'..'z' into 'A'..'Z'
	NoBlank: Filter out spaces, tabs
	Scientific: Allow '0','1','2','3','4','5','6','7','8','9','.','+','/','-','*','e','E'(Scientific notation input)
	Password: Password mode Allow ascii
	ReadOnly: Read-only mode
	Multiline: For internal use by InputTextMultiline()
	wordwarp: Word wrap
	noModify: do not modify text
	undo: undo
	console: console mode
	ShowLineNumber: show line number
	ShowLineMark: show line highlight mark
	RemoveLastZero: remove float last zero

undo-size 最大撤销步骤	undo-size="20"
allow-max-count 允许输入字符数量最大限制	allow-max-count="64"
precision 数值显示精度	precision="1" 保留1位小数点

◆ UpdateIMEPosition()

virtual void BUI::CEditLineStyle::UpdateIMEPosition ( bool show )

virtual

被 BUI::CEditRichUI , 以及 BUI::CEditTextUI 重载.

类成员变量说明

◆ m_horAlign

UINT BUI::CEditLineStyle::m_horAlign

◆ m_last_warp_width

int BUI::CEditLineStyle::m_last_warp_width

◆ m_lead_width

int BUI::CEditLineStyle::m_lead_width

◆ m_mutex_running

AtomicLock BUI::CEditLineStyle::m_mutex_running

◆ m_nChangeCount

int BUI::CEditLineStyle::m_nChangeCount

◆ m_nHexGroupCount

int BUI::CEditLineStyle::m_nHexGroupCount

◆ m_nLineSpaceing

int BUI::CEditLineStyle::m_nLineSpaceing

◆ m_nMaxLimitCount

int BUI::CEditLineStyle::m_nMaxLimitCount

◆ m_nMaxValue

double BUI::CEditLineStyle::m_nMaxValue

◆ m_nMinValue

double BUI::CEditLineStyle::m_nMinValue

◆ m_nPrecision

int BUI::CEditLineStyle::m_nPrecision

◆ m_nSelectCount

int BUI::CEditLineStyle::m_nSelectCount

◆ m_nUndoMaxSize

int BUI::CEditLineStyle::m_nUndoMaxSize

◆ m_ppfont

GFont** BUI::CEditLineStyle::m_ppfont

◆ m_pRcClient

RECT* BUI::CEditLineStyle::m_pRcClient

◆ m_roundSize

SIZE BUI::CEditLineStyle::m_roundSize

◆ m_textFlag

UINT BUI::CEditLineStyle::m_textFlag

◆ m_textPadding

PaddingInfo BUI::CEditLineStyle::m_textPadding

◆ m_tipsText

BeString BUI::CEditLineStyle::m_tipsText

◆ m_undo_

std::deque<UnDoRecord> BUI::CEditLineStyle::m_undo_

◆ m_undo_back_

std::deque<UnDoRecord> BUI::CEditLineStyle::m_undo_back_
