控件基类更多...

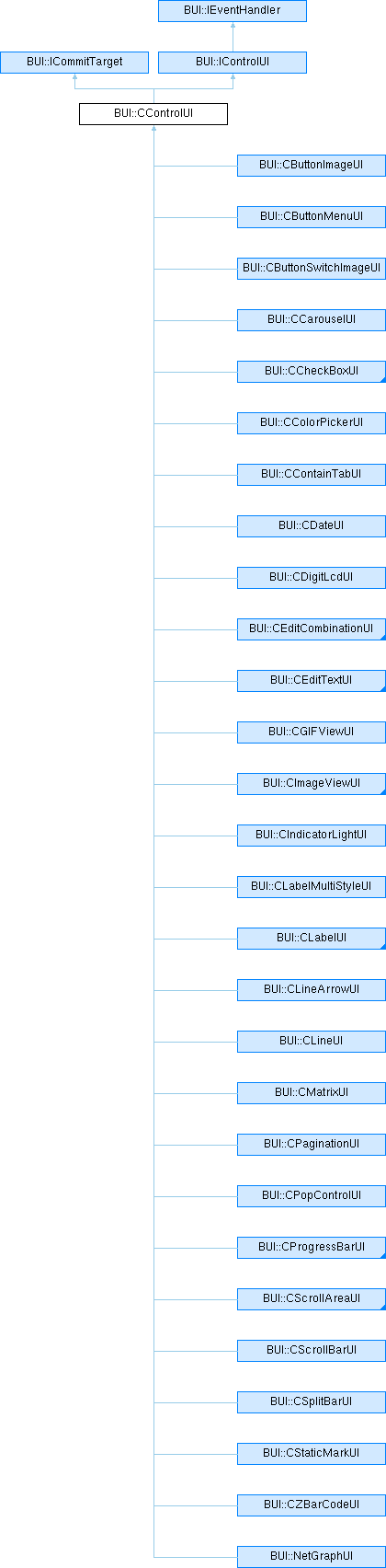

类 BUI::CControlUI 继承关系图:

类
struct	LinkControl
struct	PopControlInfo

Public 成员函数
	CControlUI ()
virtual	~CControlUI ()
BOOL	Create (IManageHandler manager, LPCTSTR name, LPCTSTR text, DWORD style, RECT rc, CControlUI parent=NULL, UINT id=0)
	创建虚拟控件:创建过程中，会将控件加入到全局的垃圾管理机制中。用于在程序退出时，释放内存
BOOL	Create (IManageHandler manager, LPCTSTR name, LPCTSTR text, DWORD style, int x, int y, int cx, int cy, CControlUI parent=NULL, UINT num_id=0)
void	InsertChild (CControlUI current, CControlUI prev)
	插入子控件
BOOL	RemoveChild (CControlUI *child)
	删除子控件
IManageHandler *	GetManagerUI () const
	返回管理器对象
BOOL	SendParentMessage (UINT message, WPARAM wp, LPARAM lp) const
BOOL	SendToManager (UINT message, WPARAM wp=0, LPARAM lp=0)
void	SendToAllChilds (UINT message, WPARAM wp, LPARAM lp)
	将消息传递给每一个子控件响应
void	SetEventHandler (IEventHandler *hander)
	设置事件处理对象
IEventHandler *	EventHandler () const
	获得事件处理对象
void	SetParent (CControlUI *parent)
	设置父控件
CControlUI *	Parent () const
	父控件
CControlUI *	FirstChild () const
	第一个孩子节点
CControlUI *	LastChild () const
	最后的孩子节点
CControlUI *	NextSibling () const
	下一个兄弟节点
CControlUI *	PrevSibling () const
	上一个兄弟节点
void	AddAnimate (const BeString &id, std::shared_ptr< GAnimateProperty > animate)
	添加动画
void	PauseAnimate (BOOL is_pause)
	动画使能：暂停(TRUE)或开启(FALSE)
GAnimateTransformVector &	AnimateTransform ()
	获得动画数组
void	ModifyControlFlags (uint64_t style, UINT op=ADD_FLAGS)
	设置控件风格
uint64_t	IsHasControlFlags (uint64_t flags) const
uint64_t	GetControlFlags () const
POINT	GetViewPoint (float xp, float yp, BOOL is_client=FALSE) const
	获得控件内的绝对位置坐标
RECT	GetViewParentRect (float cx, float cy, float w, float h) const
	获得父控件内的位置坐标
POINT	GetParentViewPoint (float xp, float yp, BOOL is_client=FALSE) const
	获得父控件内的绝对位置坐标
void	SetControlNotes (const BeString &str)
	设置控件注释信息
BeString	GetControlNotes () const
	获得控件的注释信息
LPCTSTR	Text () const
	获得文本
void	SetControlText (BeString str, BOOL is_refresh=FALSE)
	设置文本
void	SetAdaptMinText (const BeString &str)
	布局最小适应文本
void	SetControlTextByNumber (double value, int precision, BOOL remoe_last_zero)
	以数值设置文本
double	GetControlTextNumber () const
	获得文本表示的数值
void	SetVarName (const BeString &str)
	设置控件唯一标识符
void	SetVarNameA (const char *var_name)
	设置控件唯一标识符
void	SetVarNameW (const WCHAR *varname)
	设置控件唯一标识符
void	SetCommitTarget (ICommitTarget *obj)
	设置数据提交对象
void	AddAbsordLayout (std::shared_ptr< ILayout > layout)
	添加悬浮布局
void	DelAbsordLayout (std::shared_ptr< ILayout > layout)
	删除悬浮布局
void	SetBlurSize (UINT size)
	设置高斯模糊尺寸
UINT	BlurSize () const
	返回高斯模糊尺寸
GBrushArray	GetControlColorsStyle (ColorSceneType type)
	获取颜色外观
void	SetControlColorsStyle (ColorSceneType type, GBrushArray colors)
	设置颜色外观
void	SetShadowText (int dx, int dy, int blur_x, int blur_y, const GColor &color)
	设置文本阴影
void	SetRoundRadiusValues (const CNumberValue radius[8])
	设置矩形圆角
void	GetRoundRadius (RoundRectRadius &ra) const
void	GetRoundRadiusWithRect (const RECT &rc, RoundRectRadius &ra) const
GShadowContain &	GetShadowContain ()
	获得阴影容器对象
GFont *	GetFont () const
	获得字体
void	SetFont (GFont *font)
	设置字体
void	SetFontSize (int height)
	设置字体大小
void	SetStrokeSize (UINT size)
	设置轮廓线宽
void	SetPositionX (int x)
	设置控件x坐标
void	SetPositionY (int y)
	设置控件y坐标
void	SetPositionXY (int x, int y)
	设置控件(x,y)坐标
int	Width () const
	获得控件宽度
void	SetWidth (int w)
	设置控件宽度
int	Height () const
	获得控件高度
void	SetHeight (int h)
	设置控件高度
int	SaveAsImage (LPCTSTR out_png)
	保存控件图像为png
int	SaveAsLongImage (LPCTSTR out_png)
	保存为长图
void	BindAction (const std::shared_ptr< IActionNotify > &notify)
	绑定事件
void	ClearAction ()
	清空事件
void	TriggerAction ()
	触发事件
ActionTable &	GetActionTable ()
	获得鼠标事件映射表
void	TriggerScript ()
	执行脚本事件
ActionKeyboardMap *	GetActionKeyboard (BOOL is_create=TRUE)
	获得键盘事件表
void	SetCaptureCtl ()
	捕获鼠标
void	ReleaseCaptureCtl ()
	释放焦点捕获
void	ChangeUIToNodeLink ()
	将控件控制权，交给Node节点控制
void	SetClipZoom (int x, int y, int w, int h)
	设置控件可视裁剪区域。约束控件的显示区域
BOOL	BringBottomMost ()
	将控件移动到所有兄弟控件中的第一个
BOOL	BringTopMost ()
	将控件移动到所有兄弟控件中的最后一个
BOOL	TestOrder () const
	判断是否被其他控件遮盖 TRUE 代表遮盖
void	TipTrack (int x, int y, LPCTSTR text=NULL)
	提示框显示位置 x, y 是相对窗口
void	TipHide ()
	隐藏提示框
void	ShowControl (bool is_show, bool notify_layout=true)
	显示虚拟窗口
void	SetVisibleWhenMouseHover (BOOL open)
	设置只在鼠标悬停时，显示控件
BOOL	IsVisible () const
	控件在父控件中的显示状态
BOOL	IsFocused () const
	焦点状态
void	EnableControl (bool is_enable, bool is_refresh=true)
	TRUE:启用控件. FALSE:禁用控件
void	EnableNodeFlagControl (bool is_enable, bool is_refresh=true)
	nodedata包含的控件。表示node是否被禁用
BOOL	IsEnabled () const
	判断是否可用。TRUE：代表可用
BOOL	IsBkShowTiming () const
void	SetBkShowTiming (ShowModel mode)
	背景绘制时机
void	SetBorderShowTiming (ShowModel mode)
	边框绘制时机
BOOL	IsCreateSucceed () const
	判断是否是有效控件
BOOL	IsShortCutVaild ()
	判断是否存在快捷键
void	EnableShortCut (bool is_enable)
	开启(或禁用)快捷键
void	SetShortCut (int virtual_key)
void	SetShortCutCtrlCode (UBYTE virtual_key)
BOOL	DoShortCut (UBYTE ctrl, UBYTE virtual_key)
void	EnableBorderAdjustFlag (UINT align_border=ALIGN_LEFT, bool is_enable=true)
	设置边框调整使能
void	SetToolTipText (LPCTSTR tip_text)
	设置提示文本
void	SetToolTipText (const BeString &tip_str)
	设置提示文本
void	SetPopTipUI (const std::shared_ptr< PopControlInfo > &pop_info)
	设置弹出pop显示ui
void	AutoAdaptSize ()
	自动计算自适应大小
void	PopupPosition (int x, int y, int dx, int dy, UINT align)
void	PopTipUI (BOOL is_show)
	展示pop状态
BOOL	HitTestPopUI (POINT pt)
	是否命中弹出控件
void	GetRectInScreen (LPRECT rc)
	获得在HWND中的绝对位置
void	SetControlMouseCursor (CursorMouse id)
	设置控件的鼠标光标
void	SetFocus ()
	取得焦点和HWND焦点不要混淆，这是不一样的东西，只是函数名称我为了好记住
void	Scroll (int x, int y)
	视区的坐标原点偏移
void	Refresh (BOOL is_sync=FALSE)
	窗口失效重绘
void	RefreshThreadSafe ()
	在gui线程之外时调安全的刷新函数
void	RefreshRect (RECT *rc_update)
	窗口失效重绘
void	GetDragPos (RECT *rc) const
	窗口拖拽的原始位置
void	OnDestory ()
	控件销毁
void	UpdateAdaptLayout () const
	更新adapt布局
BOOL	MoveControl (RECT rect, BOOL is_refresh=TRUE)
	移动控件到目标矩形区域
BOOL	MoveControl (int x, int y, int w, int h, BOOL is_refresh=TRUE)
	移动控件位置。(x,y)代表父控件坐标空间值
void	MoveDragControl (int dx, int dy, BOOL is_refresh=TRUE)
	拖拽移动。（dx，dy）移动距离向量
void	MoveCenterByPercent (RECT *rc_view, float scale_x=0.5, float scale_y=0.5, int w=0, int h=0, BOOL adapt_dpi=FALSE, BOOL is_refresh=TRUE)
	将控件移动到以(scale_x, scale_y)百分比的中心点
void	MoveControlAnimate (RECT rc_start, RECT rc_end, BOOL is_show, int animate_duration=300)
	以动画模式移动
void	PopupAtMousePosition (int dx, int dy, int w, int h, BOOL adapt_dpi=FALSE, BOOL is_refresh=TRUE)
	在鼠标位置出弹出控件
void	ResetLayoutChilds (UINT flags=0)
	重置子布局
void	SetSkinModule (const BeString &skin_group)
	设置皮肤id
void	SetSkinStyle (const BeString &skin_name)
	设置皮肤id
void	SetDrawStyleWithFourCode (LPCTSTR draw_style)
	设置控件绘制的风格样式，同一种控件的表现样式可以有多种。输入值只有前四位字符有效。一个控件表现形式在实际中不会很多。不用整形的目的是增强可读性
BOOL	IsDrawStyleWithFourCode (TCHAR a='\0', TCHAR b='\0', TCHAR c='\0', TCHAR d='\0') const
	判断是否匹配四字符数
void	GetSkinModule (BeStringShort64 &module_name)
void	GetSkinStyle (BeStringShort64 &style_name)
RECT	GetMarginAreaRect (BOOL contain_shadow=FALSE) const
	获得外边距下的相对于窗口的矩形区域
RECT	GetControlRect () const
	获得控件在窗口坐标下的矩形区域
RECT	GetControlClientRect () const
	返回基于客户区的坐标
RECT	GetControlScreenRect () const
	返回基于屏幕的坐标
RECT	GetOppositePosition (RECT rc_contain, RECT rc_child, BOOL is_intersect=TRUE) const
	返回rc_child相对rc_contain坐标系的位置
SIZE	GetStringSize (LPCTSTR str) const
	获得字符串尺寸
ILayout *	GetAttchLayout () const
	获得管理控件自身的布局对象
ShowStatus	GetPaintStatus (bool ignore_left_button=true) const
	获得控件状态
POINT	GetClientPoint (double percent_width, double percent_height)
	获得控件坐标系下百分比的绝对位置
CControlUI *	FindTabFocusControl (BOOL is_next) const
	获得接下来的焦点控件
void	NotifyMangerIsDestory ()
	告知管理者已销毁
ST_Policy *	GetSignalPolicy ()
	信号和槽机制的回收器
BOOL	TranslateSyncMsg (UINT message, WPARAM wp, LPARAM lp)
	向上层转发同步消息
BOOL	OnMessageHandler (UINT message, WPARAM wp, LPARAM lp) override
	虚拟控件最终消息处理过程
int	FindChildControlByHandler (std::vector< CControlUI * > &vec, IEventHandler *handler)
	查找(通过控件的SetEventHandler()指定的事件处理对象来寻找)
int	FindAllControlByName (std::vector< CControlUI * > &vec, LPCTSTR str_name, BOOL is_recursion=TRUE) const
	在当前控件之下查找所有同名控件
int	FindAllControl (std::vector< CControlUI * > &vec, BOOL is_recursion=TRUE) const
	获得所有子控件
CControlUI *	FindControlByName (LPCTSTR str_name, BOOL is_recursion=TRUE) const
	在当前控件之下查找控件
CControlUI *	GetParent () const
	获得父窗口
CControlUI *	GetParentOnTopMost () const
	获得最顶层父窗口
CControlUI *	HitTestChildControl (POINT pt, BOOL is_recursive=TRUE) const
	定位到子控件对象
CControlUI *	NextFocusControl (BOOL is_prev=FALSE) const
	下一个焦点控件
void	SaveSettingConfig ()
	保存配置
BOOL	OnPaintControl (ISurface *surface, LPRECT rc_update=NULL, LPRECT rc_parent_view=NULL)
	控件渲染
float	BackOpacity () const
	背景透明度
float	BorderOpacity () const
	轮廓边框透明度
float	StrokeDashOffset () const
	Dash偏移
virtual POINT	ViewOrigin () const
	坐标原点偏移量
virtual CControlUI *	HitTestControl (POINT pt)
	根据位置得到最终的定位控件
virtual BOOL	HitTest (POINT pt)
	点击测试
virtual void	GetLayoutViewRect (RECT *rc)
virtual BeString	GetControlText ()
virtual void	GetControlValueText (BasicStringBuffer &buffer)
	获得控件所表达的数据的文本，比如复选框的状态("0"/"1"),方便上层统一操作
virtual void	SetControlValueText (const BeString &str)
	设置控件所表达的数据的文本，比如复选框的状态("0"/"1"),方便上层统一操作
virtual ILayout *	BoxLayoutMgr ()
	容器布局对象
virtual void	Activate ()
	激活
virtual CControlUI *	Clone ()
	克隆对象
virtual void	ChangeThemeColors ()
	切换主题色
virtual void	GetRelationship (std::vector< BeString > &list)
	获得类的继承关系
virtual void	ShellAttribute (const BeString &str_name, const BeString &str_value)
	命令控制和属性设置接口
virtual void	GetAttributeNames (std::vector< BeString > &out_vec)
BOOL	ShellAttributeToChildControl (const BeString &child_name, const BeString &str_name, const BeString &str_value)
virtual void	OnParseItemData (XMLItem *node)
	解析xml文件对应的数据
virtual void	OnParseAnimate (XMLItem *node)
	解析控件动画对象
virtual void	OnSaveConfigSetting (XMLItem *node)
	保存控件属性到全局配置文件
virtual void	OnLoadConfigSetting (XMLItem *node)
	加载控件属性
virtual void	OnCreate ()
	产生时间是窗口创建之后显示之前
virtual void	OnFontChange ()
	字体更改
virtual void	OnControlSize ()
	控件尺寸改变时触发
virtual void	OnShow (bool is_show)
	控件可见性发生变化时触发
virtual void	OnCtrlKillFocus ()
	ui控件失去焦点
virtual void	OnCtrlSetFocus ()
	ui控件获得焦点
virtual BOOL	OnKillFocus (WPARAM wp, LPARAM lp)
	当管理的句柄HWND失去焦点时进入此函数，也就是此函数实际上是窗口 MSG_WND_KILLFOCUS的响应
virtual BOOL	OnHSCrollBar (WPARAM wp, LPARAM lp)
virtual BOOL	OnVSCrollBar (WPARAM wp, LPARAM lp)
virtual BOOL	OnSetCursor (WPARAM wp, LPARAM lp)
virtual BOOL	OnNcHitTest (POINT pt)
virtual BOOL	OnMouseMove (WPARAM wp, LPARAM lp)
virtual BOOL	OnMouseEnter (WPARAM wp, LPARAM lp)
	在鼠标进入控件时触发
virtual BOOL	OnMouseLeave (WPARAM wp, LPARAM lp)
virtual BOOL	OnMouseWheel (WPARAM wp, LPARAM lp)
	鼠标滑轮消息
virtual BOOL	OnLButtonDown (WPARAM wp, LPARAM lp)
virtual BOOL	OnLButtonUp (WPARAM wp, LPARAM lp)
virtual BOOL	OnLButtonCliked (WPARAM wp, LPARAM lp)
virtual BOOL	OnRButtonDown (WPARAM wp, LPARAM lp)
virtual BOOL	OnRButtonUp (WPARAM wp, LPARAM lp)
virtual BOOL	OnRButtonCliked (WPARAM wp, LPARAM lp)
virtual BOOL	OnKeyDown (WPARAM wp, LPARAM lp)
	键盘消息
virtual BOOL	OnKeyUp (WPARAM wp, LPARAM lp)
virtual BOOL	OnChar (WPARAM wp, LPARAM lp)
virtual BOOL	OnTimerEvent (unsigned int timer_id, UINT msec)
	定时器事件响应
virtual BOOL	DoPaintShadow (ISurface surface, bool is_inset, RECT rect_update)
virtual BOOL	OnPaintControl3D (ISurface *surface, LPRECT rc_update)
virtual BOOL	DoPaintBackGround (ISurface surface, RECT rect_update)
	绘制背景
virtual BOOL	DoPaint (ISurface surface, RECT rect_update)
	绘制前景
virtual BOOL	DoPaintBorder (ISurface surface, RECT rect_update)
	绘制边框
virtual BOOL	DoPaintFinished (ISurface surface, RECT rect_update)
	绘制结束事件，极少场景需要用到
virtual BOOL	DoPaintGL (ISurface surface, RECT rect_update)
	绘制GL
virtual BOOL	OnDropBegin ()
	鼠标拖拽开始
virtual BOOL	OnDropEnd ()
	鼠标拖拽结束
virtual void	CloneAttribute (CControlUI *clone)
	克隆属性
int	LayoutAdaptWidth (int exp_height) override
	自适应宽度计算
int	LayoutAdaptHeight (int exp_width) override
	自适应高度计算
int	GetSplitControlOffsetW () override
	获得拆分宽度偏移
int	GetSplitControlOffsetH () override
	获得拆分高度偏移
void	Layout (int x, int y, int w, int h, UINT flags) override
bool	IsVisibleLayout () override
	布局可见性判断
RECT	GetPosition () override
	获得布局矩形区域位置
void	SetLauoutInfo (ILayout *parent, int w, int h, LayoutMode mw, LayoutMode mh)
void	ChangeManager (IManageHandler *manager)
	改变控件的管理对象(将抽象控件改变实际窗口的作用域)。
void	DoChangeThemeColors (const BeString &name)
	主题应用
Public 成员函数继承自 BUI::ICommitTarget
	ICommitTarget ()
virtual	~ICommitTarget ()
virtual void	OnSummitTarget (FourCode four_code, LPCTSTR data)
	对象之间传递数据的提交操作
Public 成员函数继承自 BUI::IControlUI
	IControlUI ()
virtual	~IControlUI ()
Public 成员函数继承自 BUI::IEventHandler
	IEventHandler ()
virtual	~IEventHandler ()

静态 Public 成员函数
static void	ChangeParent (CControlUI obj_this, CControlUI parent, CControlUI *prev)
static void	ParseShortCutText (const char *text, UINT &virtual_ctrl, UINT &virtual_key)
	解析快捷键
static BeString	ConvertShortCutCodeToText (UINT virtual_ctrl, UINT virtual_key)
	快捷键转换为字符串

Public 属性
BeString	m_name
UINT	m_int_id
IManageHandler *	m_manager
CControlUI *	m_parent
CControlUI *	m_first_child
CControlUI *	m_last_child
CControlUI *	m_next_sibling
CControlUI *	m_prev_sibling
LinkControl	m_link_gc
LinkControl	m_link_for_cell
LinkActionNode	m_link_moving
LinkPtr	m_link_anim
LinkPtr	m_link_pop_ui
RECT	m_rect_pos
UINT	m_blur_size
UBYTE	m_visible
	全部为0代表可见 bit0: 表示控件自身的可视状态 bit1: 表示父控件的可视状态 bit2: 表示鼠标进入时才有可视状态
UBYTE	m_enable
	全部为0代表可用 bit0 表示控件自身的可用状态 bit1 表示父控件的禁用状态 bit2: nodecell禁用状态
UBYTE	m_bk_show_timing
	ShowModel OnNever 从不绘制 OnAlways 一直绘制 OnHighLight 高亮时绘制
UBYTE	m_border_show_timing

Protected 成员函数
void	UpdateMarginStateFlag ()
	更新margin状态标志位
BOOL	SetMouseCursor (CursorMouse id)
	设置系统光标
void	ClientToHWNDScreen ()
	将控件坐标转换为窗口下的坐标
void	RePlotChildPos ()
void	AdjustLayoutControlSize (POINT pt)
	用户调整控件大小
void	NotifyChildControlEnableChange (bool is_enable)
	父控件被禁用时，同步更新子控件禁用状态
void	NotifyChildControlVisableChange (bool is_show)
	父控件被隐藏时，同步更新子控件隐藏状态

静态 Protected 成员函数
static UBYTE	ReturnBitFlag (UBYTE value, UINT bit_pos, BOOL is_enable)

Protected 属性
IEventHandler *	m_event_handler
ICommitTarget *	m_commit_target
BeString	m_text
BeString	m_name_skin_module
BeString	m_name_skin_style
BeString	m_capture_save_file
BeString	m_text_notes
BeStringA	m_script_code
BeStringA	m_script_val
Location	m_locationinfo
POINT	m_point_origin
uint64_t	m_flags_ctrl
RECT	m_rect_begin_track
RECT	m_rect_clip
GFont *	m_font
CursorMouse	m_cursor
UINT	m_border_size
PenType	m_pen_type
ActionList	m_action
ActionTable	m_action_map
ActionKeyboardMap *	m_kb_event
ILayout *	m_layout
BeString	m_text_min_adapter
CNumberValue *	m_round_radius
CNumberValue *	m_margin_on_hover
GBrushArray	m_bru_fill
GBrushArray	m_bru_stroke
GBrushArray	m_bru_text
GShadowContain	m_shadow_contain
ShadowInfo *	m_shadow_text
ST_Policy	m_sig_policy
syntax_info *	m_cmd_ast
BeString	m_text_poptips
std::shared_ptr< PopControlInfo >	m_pop_ui_info
std::vector< std::shared_ptr< ILayout > >	m_absord_uis
std::map< BeString, std::shared_ptr< GAnimateProperty > >	m_anim_all
std::shared_ptr< GAnimatePropertyValue< float > >	m_anima_fill_opacity
std::shared_ptr< GAnimatePropertyValue< float > >	m_anima_stroke_opacity
std::shared_ptr< GAnimatePropertyValue< float > >	m_anima_stroke_dash
std::shared_ptr< GAnimatePropertyValue< float > >	m_anima_moving
GAnimateTransformVector	m_anim_trans
FourCode	m_draw_style
UBYTE	m_hit_flag
UBYTE	m_key_down

详细描述

控件基类

构造及析构函数说明

◆ CControlUI()

BUI::CControlUI::CControlUI ( )

◆ ~CControlUI()

virtual BUI::CControlUI::~CControlUI ( )

virtual

成员函数说明

◆ Activate()

virtual void BUI::CControlUI::Activate ( )

virtual

激活

被 BUI::CButtonUI, BUI::CCheckBoxUI , 以及 BUI::COptionUI 重载.

◆ AddAbsordLayout()

void BUI::CControlUI::AddAbsordLayout ( std::shared_ptr< ILayout > layout )

添加悬浮布局

◆ AddAnimate()

void BUI::CControlUI::AddAnimate	(	const BeString &	id,
		std::shared_ptr< GAnimateProperty >	animate )

添加动画

参数

id:动画id
animate	:动画属性

◆ AdjustLayoutControlSize()

void BUI::CControlUI::AdjustLayoutControlSize ( POINT pt )

protected

用户调整控件大小

◆ AnimateTransform()

GAnimateTransformVector & BUI::CControlUI::AnimateTransform ( )

获得动画数组

◆ AutoAdaptSize()

void BUI::CControlUI::AutoAdaptSize ( )

自动计算自适应大小

◆ BackOpacity()

float BUI::CControlUI::BackOpacity ( ) const

背景透明度

◆ BindAction()

void BUI::CControlUI::BindAction ( const std::shared_ptr< IActionNotify > & notify )

绑定事件

◆ BlurSize()

UINT BUI::CControlUI::BlurSize ( ) const

返回高斯模糊尺寸

◆ BorderOpacity()

float BUI::CControlUI::BorderOpacity ( ) const

轮廓边框透明度

◆ BoxLayoutMgr()

virtual ILayout * BUI::CControlUI::BoxLayoutMgr ( )

virtual

容器布局对象

被 BUI::CContainLayoutUI 重载.

◆ BringBottomMost()

BOOL BUI::CControlUI::BringBottomMost ( )

将控件移动到所有兄弟控件中的第一个

◆ BringTopMost()

BOOL BUI::CControlUI::BringTopMost ( )

将控件移动到所有兄弟控件中的最后一个

◆ ChangeManager()

void BUI::CControlUI::ChangeManager ( IManageHandler * manager )

改变控件的管理对象(将抽象控件改变实际窗口的作用域)。

◆ ChangeParent()

void BUI::CControlUI::ChangeParent	(	CControlUI *	obj_this,
		CControlUI *	parent,
		CControlUI *	prev )

static

◆ ChangeThemeColors()

virtual void BUI::CControlUI::ChangeThemeColors ( )

virtual

切换主题色

被 BUI::CChartViewUI, BUI::CTreeListUI , 以及 BUI::CTreeTableViewUI 重载.

◆ ChangeUIToNodeLink()

void BUI::CControlUI::ChangeUIToNodeLink ( )

将控件控制权，交给Node节点控制

◆ ClearAction()

void BUI::CControlUI::ClearAction ( )

清空事件

◆ ClientToHWNDScreen()

void BUI::CControlUI::ClientToHWNDScreen ( )

protected

将控件坐标转换为窗口下的坐标

◆ Clone()

virtual CControlUI * BUI::CControlUI::Clone ( )

virtual

克隆对象

◆ CloneAttribute()

virtual void BUI::CControlUI::CloneAttribute ( CControlUI * clone )

virtual

◆ ConvertShortCutCodeToText()

BeString BUI::CControlUI::ConvertShortCutCodeToText	(	UINT	virtual_ctrl,
		UINT	virtual_key )

static

快捷键转换为字符串

◆ Create() [1/2]

BOOL BUI::CControlUI::Create	(	IManageHandler *	manager,
		LPCTSTR	name,
		LPCTSTR	text,
		DWORD	style,
		int	x,
		int	y,
		int	cx,
		int	cy,
		CControlUI *	parent = NULL,
		UINT	num_id = 0 )

◆ Create() [2/2]

BOOL BUI::CControlUI::Create	(	IManageHandler *	manager,
		LPCTSTR	name,
		LPCTSTR	text,
		DWORD	style,
		RECT	rc,
		CControlUI *	parent = NULL,
		UINT	id = 0 )

创建虚拟控件:创建过程中，会将控件加入到全局的垃圾管理机制中。用于在程序退出时，释放内存

参数

manager	:管理对象不能为空对象
name	:控件的检索标识符号，可用来查找控件
text	:控件文本内容
style	:控件风格
rc	:位置信息
parent	:父控件指针
num_id	:整型检索ID

返回: BOOL :TRUE 创建成功 FALSE创建失败

◆ DelAbsordLayout()

void BUI::CControlUI::DelAbsordLayout ( std::shared_ptr< ILayout > layout )

删除悬浮布局

◆ DoChangeThemeColors()

void BUI::CControlUI::DoChangeThemeColors ( const BeString & name )

主题应用

◆ DoPaint()

virtual BOOL BUI::CControlUI::DoPaint	(	ISurface *	surface,
		RECT *	rect_update )

virtual

绘制前景

被 BUI::CBinaryBoxUI, BUI::CButtonImageUI, BUI::CButtonMenuUI, BUI::CButtonNodeUI, BUI::CButtonSVGUI, BUI::CButtonSwitchImageUI, BUI::CButtonSysUI, BUI::CButtonTextureUI, BUI::CButtonUI, BUI::CCarouselUI, BUI::CChartViewUI, BUI::CChatEditUI, BUI::CChatListUI, BUI::CCheckBoxUI, BUI::CColorBarUI, BUI::CColorPickerUI, BUI::CComboBaseUI, BUI::CComboColorPickerUI, BUI::CContainerUI, BUI::CContainLayoutUI, BUI::CContainTitleUI, BUI::CDateUI, BUI::CDigitLcdUI, BUI::CEditCombinationUI, BUI::CEditFrameUI, BUI::CEditRichUI, BUI::CEditSpinBoxUI, BUI::CEditTextUI, BUI::CGIFViewUI, BUI::CGradientColorPickerUI, BUI::CImageViewUI, BUI::CIndicatorLightUI, BUI::CLabelMultiStyleUI, BUI::CLabelUI, BUI::CLayoutArrowContainUI, BUI::CLineArrowUI, BUI::CLineUI, BUI::CListBoxUI, BUI::CLottieUI, BUI::CNodeDataListUI, BUI::COptionUI, BUI::CPaginationUI, BUI::CProgressBarUI, BUI::CScrollBarUI, BUI::CSliderUI, BUI::CSplitBarUI, BUI::CStaticMarkUI, BUI::CTableViewUI, BUI::CTreeListUI, BUI::CTreeTableViewUI , 以及 BUI::CView3dUI 重载.

◆ DoPaintBackGround()

virtual BOOL BUI::CControlUI::DoPaintBackGround	(	ISurface *	surface,
		RECT *	rect_update )

virtual

绘制背景

被 BUI::CButtonPolygonUI, BUI::CButtonSysUI, BUI::CColorBarUI, BUI::CContainerUI, BUI::CEditFrameUI, BUI::CEditTextUI, BUI::CIndicatorLightUI, BUI::CLayoutArrowContainUI , 以及 BUI::COptionUI 重载.

◆ DoPaintBorder()

virtual BOOL BUI::CControlUI::DoPaintBorder	(	ISurface *	surface,
		RECT *	rect_update )

virtual

绘制边框

被 BUI::CButtonPolygonUI, BUI::CContainerUI, BUI::CEditFrameUI, BUI::CLayoutArrowContainUI, BUI::COptionUI , 以及 BUI::CStaticMarkUI 重载.

◆ DoPaintFinished()

virtual BOOL BUI::CControlUI::DoPaintFinished	(	ISurface *	surface,
		RECT *	rect_update )

virtual

绘制结束事件，极少场景需要用到

被 BUI::CNodeEditorUI 重载.

◆ DoPaintGL()

virtual BOOL BUI::CControlUI::DoPaintGL	(	ISurface *	surface,
		RECT *	rect_update )

virtual

绘制GL

被 BUI::CView3dUI 重载.

◆ DoPaintShadow()

virtual BOOL BUI::CControlUI::DoPaintShadow	(	ISurface *	surface,
		bool	is_inset,
		RECT *	rect_update )

virtual

被 BUI::CBinaryBoxUI, BUI::CButtonPolygonUI, BUI::CButtonTextureUI, BUI::CDigitLcdUI, BUI::CLayoutArrowContainUI, BUI::COptionUI , 以及 BUI::CProgressBarUI 重载.

◆ DoShortCut()

BOOL BUI::CControlUI::DoShortCut	(	UBYTE	ctrl,
		UBYTE	virtual_key )

◆ EnableBorderAdjustFlag()

void BUI::CControlUI::EnableBorderAdjustFlag	(	UINT	align_border = ALIGN_LEFT,
		bool	is_enable = true )

设置边框调整使能

◆ EnableControl()

void BUI::CControlUI::EnableControl	(	bool	is_enable,
		bool	is_refresh = true )

TRUE:启用控件. FALSE:禁用控件

◆ EnableNodeFlagControl()

void BUI::CControlUI::EnableNodeFlagControl	(	bool	is_enable,
		bool	is_refresh = true )

nodedata包含的控件。表示node是否被禁用

◆ EnableShortCut()

void BUI::CControlUI::EnableShortCut ( bool is_enable )

开启(或禁用)快捷键

◆ EventHandler()

IEventHandler * BUI::CControlUI::EventHandler ( ) const

获得事件处理对象

◆ FindAllControl()

int BUI::CControlUI::FindAllControl	(	std::vector< CControlUI * > &	vec,
		BOOL	is_recursion = TRUE ) const

获得所有子控件

参数

vec
is_recursion	是否递归（包含递归的子控件）

返回: int 控件个数

◆ FindAllControlByName()

int BUI::CControlUI::FindAllControlByName	(	std::vector< CControlUI * > &	vec,
		LPCTSTR	str_name,
		BOOL	is_recursion = TRUE ) const

在当前控件之下查找所有同名控件

参数

str_name
vec
is_recursion	是否递归（包含递归的子控件）

返回: int 控件个数

◆ FindChildControlByHandler()

int BUI::CControlUI::FindChildControlByHandler	(	std::vector< CControlUI * > &	vec,
		IEventHandler *	handler )

查找(通过控件的SetEventHandler()指定的事件处理对象来寻找)

参数

handler
vec

返回: int

◆ FindControlByName()

CControlUI * BUI::CControlUI::FindControlByName	(	LPCTSTR	str_name,
		BOOL	is_recursion = TRUE ) const

在当前控件之下查找控件

◆ FindTabFocusControl()

CControlUI * BUI::CControlUI::FindTabFocusControl ( BOOL is_next ) const

获得接下来的焦点控件

◆ FirstChild()

CControlUI * BUI::CControlUI::FirstChild ( ) const

第一个孩子节点

◆ GetActionKeyboard()

ActionKeyboardMap * BUI::CControlUI::GetActionKeyboard ( BOOL is_create = TRUE )

获得键盘事件表

参数

is_create :若为TRUE，返回值为非空，函数会自动创建。指针不需要用户释放。控件销毁时会自动释放若为FALSE，返回当前键盘事件表。返回值为NULL时，表示没有任何事件

返回: ActionKeyboardMap*

◆ GetActionTable()

ActionTable & BUI::CControlUI::GetActionTable ( )

获得鼠标事件映射表

◆ GetAttchLayout()

ILayout * BUI::CControlUI::GetAttchLayout ( ) const

获得管理控件自身的布局对象

◆ GetAttributeNames()

virtual void BUI::CControlUI::GetAttributeNames ( std::vector< BeString > & out_vec )

virtual

被 BUI::CAutoMoveContainUI, BUI::CBinaryBoxUI, BUI::CButtonImageUI, BUI::CButtonMenuUI, BUI::CButtonNodeUI, BUI::CButtonPolygonUI, BUI::CButtonSVGUI, BUI::CButtonSwitchImageUI, BUI::CButtonSysUI, BUI::CButtonTextureUI, BUI::CButtonUI, BUI::CChartViewUI, BUI::CCheckBoxUI, BUI::CColorBarUI, BUI::CComboBaseUI, BUI::CComboListUI, BUI::CContainerUI, BUI::CContainLayoutUI, BUI::CContainTabUI, BUI::CContainTitleUI, BUI::CDateTimeUI, BUI::CDateUI, BUI::CDigitLcdUI, BUI::CEditFrameUI, BUI::CEditRichUI, BUI::CEditSpinBoxUI, BUI::CEditTextUI, BUI::CGIFViewUI, BUI::CImageViewListUI, BUI::CImageViewUI, BUI::CIndicatorLightUI, BUI::CLabelMultiStyleUI, BUI::CLabelUI, BUI::CLayoutArrowContainUI, BUI::CLineArrowUI, BUI::CLineUI, BUI::CNodeEditorUI, BUI::COptionUI, BUI::CProgressBarUI, BUI::CScrollAreaUI, BUI::CScrollBarUI, BUI::CSliderUI, BUI::CTableViewUI, BUI::CTreeListUI , 以及 BUI::CTreeTableViewUI 重载.

◆ GetClientPoint()

POINT BUI::CControlUI::GetClientPoint	(	double	percent_width,
		double	percent_height )

获得控件坐标系下百分比的绝对位置

◆ GetControlClientRect()

RECT BUI::CControlUI::GetControlClientRect ( ) const

返回基于客户区的坐标

◆ GetControlColorsStyle()

GBrushArray BUI::CControlUI::GetControlColorsStyle ( ColorSceneType type )

获取颜色外观

◆ GetControlFlags()

uint64_t BUI::CControlUI::GetControlFlags ( ) const

◆ GetControlNotes()

BeString BUI::CControlUI::GetControlNotes ( ) const

获得控件的注释信息

◆ GetControlRect()

RECT BUI::CControlUI::GetControlRect ( ) const

获得控件在窗口坐标下的矩形区域

◆ GetControlScreenRect()

RECT BUI::CControlUI::GetControlScreenRect ( ) const

返回基于屏幕的坐标

◆ GetControlText()

virtual BeString BUI::CControlUI::GetControlText ( )

virtual

被 BUI::CDateUI , 以及 BUI::CListBoxUI 重载.

◆ GetControlTextNumber()

double BUI::CControlUI::GetControlTextNumber ( ) const

获得文本表示的数值

◆ GetControlValueText()

virtual void BUI::CControlUI::GetControlValueText ( BasicStringBuffer & buffer )

virtual

获得控件所表达的数据的文本，比如复选框的状态("0"/"1"),方便上层统一操作

被 BUI::CButtonSwitchImageUI, BUI::CCheckBoxUI, BUI::CComboBaseUI, BUI::CDateTimeUI, BUI::CEditGPSLocationUI, BUI::CEditTextUI, BUI::CListBoxUI, BUI::COptionUI, BUI::CProgressBarUI , 以及 BUI::CSliderUI 重载.

◆ GetDragPos()

void BUI::CControlUI::GetDragPos ( RECT * rc ) const

窗口拖拽的原始位置

◆ GetFont()

GFont * BUI::CControlUI::GetFont ( ) const

获得字体

◆ GetLayoutViewRect()

virtual void BUI::CControlUI::GetLayoutViewRect ( RECT * rc )

virtual

被 BUI::CContainLayoutUI, BUI::CLayoutArrowContainUI , 以及 BUI::CScrollAreaUI 重载.

◆ GetManagerUI()

IManageHandler * BUI::CControlUI::GetManagerUI ( ) const

返回管理器对象

◆ GetMarginAreaRect()

RECT BUI::CControlUI::GetMarginAreaRect ( BOOL contain_shadow = FALSE ) const

获得外边距下的相对于窗口的矩形区域

◆ GetOppositePosition()

RECT BUI::CControlUI::GetOppositePosition	(	RECT	rc_contain,
		RECT	rc_child,
		BOOL	is_intersect = TRUE ) const

返回rc_child相对rc_contain坐标系的位置

◆ GetPaintStatus()

ShowStatus BUI::CControlUI::GetPaintStatus ( bool ignore_left_button = true ) const

获得控件状态

◆ GetParent()

CControlUI * BUI::CControlUI::GetParent ( ) const

获得父窗口

◆ GetParentOnTopMost()

CControlUI * BUI::CControlUI::GetParentOnTopMost ( ) const

获得最顶层父窗口

◆ GetParentViewPoint()

POINT BUI::CControlUI::GetParentViewPoint	(	float	xp,
		float	yp,
		BOOL	is_client = FALSE ) const

获得父控件内的绝对位置坐标

参数

xp	百分比参数
yp	百分比参数
is_client	TRUE表示基于客户区坐标，FALSE:基于窗口全局坐标

返回: POINT: 基于窗口的绝对坐标

◆ GetPosition()

RECT BUI::CControlUI::GetPosition ( )

overridevirtual

获得布局矩形区域位置

重载 BUI::IControlUI .

◆ GetRectInScreen()

void BUI::CControlUI::GetRectInScreen ( LPRECT rc )

获得在HWND中的绝对位置

◆ GetRelationship()

virtual void BUI::CControlUI::GetRelationship ( std::vector< BeString > & list )

virtual

获得类的继承关系

被 BUI::CAutoMoveContainUI, BUI::CBinaryBoxUI, BUI::CButtonImageUI, BUI::CButtonMenuUI, BUI::CButtonNodeUI, BUI::CButtonPolygonUI, BUI::CButtonSVGUI, BUI::CButtonSwitchImageUI, BUI::CButtonSysUI, BUI::CButtonTextureUI, BUI::CButtonUI, BUI::CCarouselUI, BUI::CChartViewUI, BUI::CChatEditUI, BUI::CChatListUI, BUI::CCheckBoxUI, BUI::CColorBarUI, BUI::CComboBaseUI, BUI::CComboColorPickerUI, BUI::CComboDateRangeUI, BUI::CComboDateUI, BUI::CComboListUI, BUI::CContainerUI, BUI::CContainLayoutUI, BUI::CContainMenuUI, BUI::CContainOptionUI, BUI::CContainScrollSyncUI, BUI::CContainTabUI, BUI::CContainTitleUI, BUI::CCustomComboxUI, BUI::CDateTimeUI, BUI::CDateUI, BUI::CDigitLcdUI, BUI::CEditFrameUI, BUI::CEditGPSLocationUI, BUI::CEditIPAddressUI, BUI::CEditKeyBoardUI, BUI::CEditRichUI, BUI::CEditSpinBoxUI, BUI::CEditTextUI, BUI::CGIFViewUI, BUI::CGradientColorPickerUI, BUI::CImageViewListUI, BUI::CImageViewUI, BUI::CIndicatorLightUI, BUI::CLabelMultiStyleUI, BUI::CLabelUI, BUI::CLayoutArrowContainUI, BUI::CLineArrowUI, BUI::CLineUI, BUI::CListBoxUI, BUI::CLottieUI, BUI::CNodeEditorUI, BUI::COptionUI, BUI::CPaginationUI, BUI::CPopControlUI, BUI::CProgressBarUI, BUI::CScrollAreaUI, BUI::CScrollBarUI, BUI::CSliderUI, BUI::CSplitBarUI, BUI::CStaticMarkUI, BUI::CTableViewUI, BUI::CTipBoxUI, BUI::CTreeListUI, BUI::CTreeTableViewUI , 以及 BUI::CView3dUI 重载.

◆ GetRoundRadius()

void BUI::CControlUI::GetRoundRadius ( RoundRectRadius & ra ) const

◆ GetRoundRadiusWithRect()

void BUI::CControlUI::GetRoundRadiusWithRect	(	const RECT &	rc,
		RoundRectRadius &	ra ) const

◆ GetShadowContain()

GShadowContain & BUI::CControlUI::GetShadowContain ( )

获得阴影容器对象

◆ GetSignalPolicy()

ST_Policy * BUI::CControlUI::GetSignalPolicy ( )

信号和槽机制的回收器

◆ GetSkinModule()

void BUI::CControlUI::GetSkinModule ( BeStringShort64 & module_name )

◆ GetSkinStyle()

void BUI::CControlUI::GetSkinStyle ( BeStringShort64 & style_name )

◆ GetSplitControlOffsetH()

int BUI::CControlUI::GetSplitControlOffsetH ( )

overridevirtual

获得拆分高度偏移

重载 BUI::IControlUI .

被 BUI::CSplitBarUI 重载.

◆ GetSplitControlOffsetW()

int BUI::CControlUI::GetSplitControlOffsetW ( )

overridevirtual

获得拆分宽度偏移

重载 BUI::IControlUI .

被 BUI::CSplitBarUI 重载.

◆ GetStringSize()

SIZE BUI::CControlUI::GetStringSize ( LPCTSTR str ) const

获得字符串尺寸

◆ GetViewParentRect()

RECT BUI::CControlUI::GetViewParentRect	(	float	cx,
		float	cy,
		float	w,
		float	h ) const

获得父控件内的位置坐标

参数

cx	百分比参数
cy	百分比参数
w	百分比参数
h	百分比参数

◆ GetViewPoint()

POINT BUI::CControlUI::GetViewPoint	(	float	xp,
		float	yp,
		BOOL	is_client = FALSE ) const

获得控件内的绝对位置坐标

参数

xp	百分比参数
yp	百分比参数
is_client	TRUE表示基于客户区坐标，FALSE:基于窗口全局坐标

返回: POINT: 基于窗口的绝对坐标

◆ Height()

int BUI::CControlUI::Height ( ) const

获得控件高度

◆ HitTest()

virtual BOOL BUI::CControlUI::HitTest ( POINT pt )

virtual

点击测试

被 BUI::CButtonPolygonUI, BUI::CEditFrameUI , 以及 BUI::CLineArrowUI 重载.

◆ HitTestChildControl()

CControlUI * BUI::CControlUI::HitTestChildControl	(	POINT	pt,
		BOOL	is_recursive = TRUE ) const

定位到子控件对象

◆ HitTestControl()

virtual CControlUI * BUI::CControlUI::HitTestControl ( POINT pt )

virtual

根据位置得到最终的定位控件

被 BUI::CContainTitleUI, BUI::CListBoxUI, BUI::CScrollBarUI, BUI::CTableViewUI, BUI::CTreeListUI , 以及 BUI::CTreeTableViewUI 重载.

◆ HitTestPopUI()

BOOL BUI::CControlUI::HitTestPopUI ( POINT pt )

是否命中弹出控件

◆ InsertChild()

void BUI::CControlUI::InsertChild	(	CControlUI *	current,
		CControlUI *	prev )

插入子控件

参数

current	:待插入的子控件UI
ppRev	:子控件的上一个兄弟节点

◆ IsBkShowTiming()

BOOL BUI::CControlUI::IsBkShowTiming ( ) const

◆ IsCreateSucceed()

BOOL BUI::CControlUI::IsCreateSucceed ( ) const

判断是否是有效控件

◆ IsDrawStyleWithFourCode()

BOOL BUI::CControlUI::IsDrawStyleWithFourCode	(	TCHAR	a = '\0',
		TCHAR	b = '\0',
		TCHAR	c = '\0',
		TCHAR	d = '\0' ) const

判断是否匹配四字符数

◆ IsEnabled()

BOOL BUI::CControlUI::IsEnabled ( ) const

判断是否可用。TRUE：代表可用

◆ IsFocused()

BOOL BUI::CControlUI::IsFocused ( ) const

焦点状态

◆ IsHasControlFlags()

uint64_t BUI::CControlUI::IsHasControlFlags ( uint64_t flags ) const

◆ IsShortCutVaild()

BOOL BUI::CControlUI::IsShortCutVaild ( )

判断是否存在快捷键

◆ IsVisible()

BOOL BUI::CControlUI::IsVisible ( ) const

控件在父控件中的显示状态

◆ IsVisibleLayout()

bool BUI::CControlUI::IsVisibleLayout ( )

overridevirtual

布局可见性判断

重载 BUI::IControlUI .

◆ LastChild()

CControlUI * BUI::CControlUI::LastChild ( ) const

最后的孩子节点

◆ Layout()

void BUI::CControlUI::Layout	(	int	x,
		int	y,
		int	w,
		int	h,
		UINT	flags )

overridevirtual

重载 BUI::IControlUI .

◆ LayoutAdaptHeight()

int BUI::CControlUI::LayoutAdaptHeight ( int exp_width )

overridevirtual

自适应高度计算

重载 BUI::IControlUI .

被 BUI::CEditRichUI, BUI::CEditTextUI, BUI::CImageViewUI, BUI::CLabelMultiStyleUI, BUI::CLabelUI, BUI::CLayoutArrowContainUI, BUI::CListBoxUI, BUI::CLottieUI, BUI::COptionUI, BUI::CTableViewUI , 以及 BUI::CTreeListUI 重载.

◆ LayoutAdaptWidth()

int BUI::CControlUI::LayoutAdaptWidth ( int exp_height )

overridevirtual

自适应宽度计算

重载 BUI::IControlUI .

被 BUI::CDigitLcdUI, BUI::CEditRichUI, BUI::CEditTextUI, BUI::CImageViewUI, BUI::CLabelMultiStyleUI, BUI::CLabelUI, BUI::CLayoutArrowContainUI, BUI::CListBoxUI, BUI::CLottieUI, BUI::COptionUI, BUI::CTableViewUI , 以及 BUI::CTreeListUI 重载.

◆ ModifyControlFlags()

void BUI::CControlUI::ModifyControlFlags	(	uint64_t	style,
		UINT	op = ADD_FLAGS )

设置控件风格

参数

style	取ControlFlag组合值
op	ADD_FLAGS(添加属性) REMOVE_FLAGS(删除属性)

◆ MoveCenterByPercent()

void BUI::CControlUI::MoveCenterByPercent	(	RECT *	rc_view,
		float	scale_x = 0.5,
		float	scale_y = 0.5,
		int	w = 0,
		int	h = 0,
		BOOL	adapt_dpi = FALSE,
		BOOL	is_refresh = TRUE )

将控件移动到以(scale_x, scale_y)百分比的中心点

参数

rc_view	视区位置信息
scale_x，scale_y	控件中心坐标
w，h	控件尺寸，为0时保持当前大小
adapt_dpi	自动适应dpi缩放
is_refresh	需要刷新重绘

◆ MoveControl() [1/2]

BOOL BUI::CControlUI::MoveControl	(	int	x,
		int	y,
		int	w,
		int	h,
		BOOL	is_refresh = TRUE )

移动控件位置。(x,y)代表父控件坐标空间值

◆ MoveControl() [2/2]

BOOL BUI::CControlUI::MoveControl	(	RECT	rect,
		BOOL	is_refresh = TRUE )

移动控件到目标矩形区域

参数

rect	:目标矩形区域。坐标系是相对于父控件的坐标
is_refresh	: 若bRepaint=TRUE,表示需要重绘。若bRepaint=TRUE，表示不需要重绘。

◆ MoveControlAnimate()

void BUI::CControlUI::MoveControlAnimate	(	RECT	rc_start,
		RECT	rc_end,
		BOOL	is_show,
		int	animate_duration = 300 )

以动画模式移动

参数

rc_start	动画开始区域
rc_end	: 动画结束区域
is_show	: 动画结束后控件显示状态
animate_duration	: 动画时长，时间单位为毫秒

◆ MoveDragControl()

void BUI::CControlUI::MoveDragControl	(	int	dx,
		int	dy,
		BOOL	is_refresh = TRUE )

拖拽移动。（dx，dy）移动距离向量

◆ NextFocusControl()

CControlUI * BUI::CControlUI::NextFocusControl ( BOOL is_prev = FALSE ) const

下一个焦点控件

◆ NextSibling()

CControlUI * BUI::CControlUI::NextSibling ( ) const

下一个兄弟节点

◆ NotifyChildControlEnableChange()

void BUI::CControlUI::NotifyChildControlEnableChange ( bool is_enable )

protected

父控件被禁用时，同步更新子控件禁用状态

◆ NotifyChildControlVisableChange()

void BUI::CControlUI::NotifyChildControlVisableChange ( bool is_show )

protected

父控件被隐藏时，同步更新子控件隐藏状态

◆ NotifyMangerIsDestory()

void BUI::CControlUI::NotifyMangerIsDestory ( )

告知管理者已销毁

◆ OnChar()

virtual BOOL BUI::CControlUI::OnChar	(	WPARAM	wp,
		LPARAM	lp )

virtual

被 BUI::CChatEditUI, BUI::CDateTimeUI, BUI::CEditGPSLocationUI, BUI::CEditIPAddressUI, BUI::CEditKeyBoardUI, BUI::CEditRichUI, BUI::CEditTextUI , 以及 BUI::CTableViewUI 重载.

◆ OnControlSize()

virtual void BUI::CControlUI::OnControlSize ( )

virtual

◆ OnCreate()

virtual void BUI::CControlUI::OnCreate ( )

virtual

产生时间是窗口创建之后显示之前

被 BUI::CAutoMoveContainUI, BUI::CButtonUI, BUI::CColorPickerUI, BUI::CComboBaseUI, BUI::CComboListUI, BUI::CDateUI, BUI::CEditCombinationUI, BUI::CGradientColorPickerUI, BUI::CLabelUI, BUI::CListBoxUI, BUI::COptionUI, BUI::CScrollAreaUI, BUI::CScrollBarUI , 以及 BUI::CTipBoxUI 重载.

◆ OnCtrlKillFocus()

virtual void BUI::CControlUI::OnCtrlKillFocus ( )

virtual

ui控件失去焦点

被 BUI::CButtonMenuUI, BUI::CComboBaseUI, BUI::CEditRichUI, BUI::CEditTextUI, BUI::CGradientColorPickerUI , 以及 BUI::CLabelUI 重载.

◆ OnCtrlSetFocus()

virtual void BUI::CControlUI::OnCtrlSetFocus ( )

virtual

ui控件获得焦点

被 BUI::CComboBaseUI, BUI::CEditRichUI , 以及 BUI::CEditTextUI 重载.

◆ OnDestory()

void BUI::CControlUI::OnDestory ( )

控件销毁

◆ OnDropBegin()

virtual BOOL BUI::CControlUI::OnDropBegin ( )

virtual

鼠标拖拽开始

◆ OnDropEnd()

virtual BOOL BUI::CControlUI::OnDropEnd ( )

virtual

鼠标拖拽结束

◆ OnFontChange()

virtual void BUI::CControlUI::OnFontChange ( )

virtual

字体更改

被 BUI::CChatEditUI, BUI::CEditRichUI , 以及 BUI::CEditTextUI 重载.

◆ OnHSCrollBar()

virtual BOOL BUI::CControlUI::OnHSCrollBar	(	WPARAM	wp,
		LPARAM	lp )

virtual

被 BUI::CContainerUI , 以及 BUI::CScrollAreaUI 重载.

◆ OnKeyDown()

virtual BOOL BUI::CControlUI::OnKeyDown	(	WPARAM	wp,
		LPARAM	lp )

virtual

键盘消息

被 BUI::CChartViewUI, BUI::CChatEditUI, BUI::CColorPickerUI, BUI::CDateUI, BUI::CEditRichUI, BUI::CEditSpinBoxUI, BUI::CEditTextUI, BUI::CListBoxUI, BUI::CPaginationUI, BUI::CSliderUI, BUI::CTableViewUI, BUI::CTreeListUI , 以及 BUI::CTreeTableViewUI 重载.

◆ OnKeyUp()

virtual BOOL BUI::CControlUI::OnKeyUp	(	WPARAM	wp,
		LPARAM	lp )

virtual

被 BUI::CEditSpinBoxUI, BUI::CTableViewUI, BUI::CTreeListUI , 以及 BUI::CTreeTableViewUI 重载.

◆ OnKillFocus()

virtual BOOL BUI::CControlUI::OnKillFocus	(	WPARAM	wp,
		LPARAM	lp )

virtual

当管理的句柄HWND失去焦点时进入此函数，也就是此函数实际上是窗口 MSG_WND_KILLFOCUS的响应

◆ OnLButtonCliked()

virtual BOOL BUI::CControlUI::OnLButtonCliked	(	WPARAM	wp,
		LPARAM	lp )

virtual

被 BUI::CButtonUI, BUI::CChatEditUI, BUI::CContainerUI, BUI::CContainTitleUI, BUI::CEditRichUI, BUI::CEditSpinBoxUI, BUI::CEditTextUI, BUI::CTableViewUI , 以及 BUI::CTreeTableViewUI 重载.

◆ OnLButtonDown()

virtual BOOL BUI::CControlUI::OnLButtonDown	(	WPARAM	wp,
		LPARAM	lp )

virtual

◆ OnLButtonUp()

virtual BOOL BUI::CControlUI::OnLButtonUp	(	WPARAM	wp,
		LPARAM	lp )

virtual

◆ OnLoadConfigSetting()

virtual void BUI::CControlUI::OnLoadConfigSetting ( XMLItem * node )

virtual

加载控件属性

被 BUI::CEditTextUI , 以及 BUI::CListBoxUI 重载.

◆ OnMessageHandler()

BOOL BUI::CControlUI::OnMessageHandler	(	UINT	message,
		WPARAM	wp,
		LPARAM	lp )

overridevirtual

虚拟控件最终消息处理过程

重载 BUI::IEventHandler .

被 BUI::CCustomComboxUI, BUI::CDateUI, BUI::CDigitLcdUI, BUI::CEditCombinationUI, BUI::CEditKeyBoardUI, BUI::CEditRichUI, BUI::CEditSpinBoxUI, BUI::CEditTextUI, BUI::CLabelMultiStyleUI, BUI::CListBoxUI, BUI::CNodeDataListUI, BUI::COptionUI, BUI::CPopControlUI, BUI::CProgressBarUI, BUI::CScrollAreaUI, BUI::CScrollBarUI, BUI::CSliderUI, BUI::CSplitBarUI, BUI::CTableViewUI, BUI::CTipBoxUI, BUI::CTreeListUI , 以及 BUI::CTreeTableViewUI 重载.

◆ OnMouseEnter()

virtual BOOL BUI::CControlUI::OnMouseEnter	(	WPARAM	wp,
		LPARAM	lp )

virtual

在鼠标进入控件时触发

被 BUI::CScrollAreaUI 重载.

◆ OnMouseLeave()

virtual BOOL BUI::CControlUI::OnMouseLeave	(	WPARAM	wp,
		LPARAM	lp )

virtual

被 BUI::CButtonMenuUI, BUI::CButtonTextureUI, BUI::CComboBaseUI, BUI::CContainerUI, BUI::CContainTitleUI, BUI::CDateUI, BUI::CEditFrameUI, BUI::CEditSpinBoxUI, BUI::CListBoxUI, BUI::CPaginationUI, BUI::CScrollAreaUI, BUI::CSliderUI, BUI::CSplitBarUI, BUI::CTableViewUI, BUI::CTreeListUI , 以及 BUI::CTreeTableViewUI 重载.

◆ OnMouseMove()

virtual BOOL BUI::CControlUI::OnMouseMove	(	WPARAM	wp,
		LPARAM	lp )

virtual

◆ OnMouseWheel()

virtual BOOL BUI::CControlUI::OnMouseWheel	(	WPARAM	wp,
		LPARAM	lp )

virtual

鼠标滑轮消息

被 BUI::CEditRichUI , 以及 BUI::CScrollAreaUI 重载.

◆ OnNcHitTest()

virtual BOOL BUI::CControlUI::OnNcHitTest ( POINT pt )

virtual

被 BUI::CCheckBoxUI, BUI::CContainerUI, BUI::CContainTitleUI, BUI::CEditCombinationUI, BUI::CEditSpinBoxUI, BUI::CPaginationUI, BUI::CScrollBarUI , 以及 BUI::CSplitBarUI 重载.

◆ OnPaintControl()

BOOL BUI::CControlUI::OnPaintControl	(	ISurface *	surface,
		LPRECT	rc_update = NULL,
		LPRECT	rc_parent_view = NULL )

控件渲染

参数

surface	: 绘图引擎
rc_update	: 裁剪可视区域.当设置为NULL时，表示刷新整个控件区域
rc_parent_view	: 父控件的可视裁剪区域

◆ OnPaintControl3D()

virtual BOOL BUI::CControlUI::OnPaintControl3D	(	ISurface *	surface,
		LPRECT	rc_update )

virtual

◆ OnParseAnimate()

virtual void BUI::CControlUI::OnParseAnimate ( XMLItem * node )

virtual

解析控件动画对象

◆ OnParseItemData()

virtual void BUI::CControlUI::OnParseItemData ( XMLItem * node )

virtual

解析xml文件对应的数据

被 BUI::CButtonNodeUI, BUI::CCarouselUI, BUI::CChartViewUI, BUI::CChatListUI, BUI::CComboListUI, BUI::CContainTitleUI, BUI::CLabelMultiStyleUI, BUI::CLineArrowUI, BUI::CListBoxUI, BUI::CNodeDataListUI, BUI::CNodeEditorUI, BUI::CScrollAreaUI, BUI::CTableViewUI, BUI::CTreeListUI , 以及 BUI::CTreeTableViewUI 重载.

◆ OnRButtonCliked()

virtual BOOL BUI::CControlUI::OnRButtonCliked	(	WPARAM	wp,
		LPARAM	lp )

virtual

被 BUI::CListBoxUI 重载.

◆ OnRButtonDown()

virtual BOOL BUI::CControlUI::OnRButtonDown	(	WPARAM	wp,
		LPARAM	lp )

virtual

◆ OnRButtonUp()

virtual BOOL BUI::CControlUI::OnRButtonUp	(	WPARAM	wp,
		LPARAM	lp )

virtual

◆ OnSaveConfigSetting()

virtual void BUI::CControlUI::OnSaveConfigSetting ( XMLItem * node )

virtual

保存控件属性到全局配置文件

被 BUI::CEditTextUI , 以及 BUI::CListBoxUI 重载.

◆ OnSetCursor()

virtual BOOL BUI::CControlUI::OnSetCursor	(	WPARAM	wp,
		LPARAM	lp )

virtual

◆ OnShow()

virtual void BUI::CControlUI::OnShow ( bool is_show )

virtual

控件可见性发生变化时触发

被 BUI::CComboBaseUI, BUI::CContainLayoutUI, BUI::CEditRichUI, BUI::CEditTextUI, BUI::CGradientColorPickerUI, BUI::COptionUI , 以及 BUI::CScrollBarUI 重载.

◆ OnTimerEvent()

virtual BOOL BUI::CControlUI::OnTimerEvent	(	unsigned int	timer_id,
		UINT	msec )

virtual

定时器事件响应

◆ OnVSCrollBar()

virtual BOOL BUI::CControlUI::OnVSCrollBar	(	WPARAM	wp,
		LPARAM	lp )

virtual

被 BUI::CChatListUI, BUI::CContainerUI, BUI::CListBoxUI , 以及 BUI::CScrollAreaUI 重载.

◆ Parent()

CControlUI * BUI::CControlUI::Parent ( ) const

父控件

◆ ParseShortCutText()

void BUI::CControlUI::ParseShortCutText	(	const char *	text,
		UINT &	virtual_ctrl,
		UINT &	virtual_key )

static

解析快捷键

◆ PauseAnimate()

void BUI::CControlUI::PauseAnimate ( BOOL is_pause )

动画使能：暂停(TRUE)或开启(FALSE)

◆ PopTipUI()

void BUI::CControlUI::PopTipUI ( BOOL is_show )

展示pop状态

◆ PopupAtMousePosition()

void BUI::CControlUI::PopupAtMousePosition	(	int	dx,
		int	dy,
		int	w,
		int	h,
		BOOL	adapt_dpi = FALSE,
		BOOL	is_refresh = TRUE )

在鼠标位置出弹出控件

参数

dx	基于鼠标的偏移量(X)
dy	基于鼠标的偏移量(Y)
w	宽度
h	高度
adapt_dpi	自动适应dpi缩放
is_refresh	需要刷新重绘

◆ PopupPosition()

void BUI::CControlUI::PopupPosition	(	int	x,
		int	y,
		int	dx,
		int	dy,
		UINT	align )

◆ PrevSibling()

CControlUI * BUI::CControlUI::PrevSibling ( ) const

上一个兄弟节点

◆ Refresh()

void BUI::CControlUI::Refresh ( BOOL is_sync = FALSE )

窗口失效重绘

◆ RefreshRect()

void BUI::CControlUI::RefreshRect ( RECT * rc_update )

窗口失效重绘

◆ RefreshThreadSafe()

void BUI::CControlUI::RefreshThreadSafe ( )

在gui线程之外时调安全的刷新函数

◆ ReleaseCaptureCtl()

void BUI::CControlUI::ReleaseCaptureCtl ( )

释放焦点捕获

◆ RemoveChild()

BOOL BUI::CControlUI::RemoveChild ( CControlUI * child )

删除子控件

◆ RePlotChildPos()

void BUI::CControlUI::RePlotChildPos ( )

protected

◆ ResetLayoutChilds()

void BUI::CControlUI::ResetLayoutChilds ( UINT flags = 0 )

重置子布局

◆ ReturnBitFlag()

UBYTE BUI::CControlUI::ReturnBitFlag	(	UBYTE	value,
		UINT	bit_pos,
		BOOL	is_enable )

staticprotected

◆ SaveAsImage()

int BUI::CControlUI::SaveAsImage ( LPCTSTR out_png )

保存控件图像为png

◆ SaveAsLongImage()

int BUI::CControlUI::SaveAsLongImage ( LPCTSTR out_png )

保存为长图

◆ SaveSettingConfig()

void BUI::CControlUI::SaveSettingConfig ( )

保存配置

◆ Scroll()

void BUI::CControlUI::Scroll	(	int	x,
		int	y )

视区的坐标原点偏移

◆ SendParentMessage()

BOOL BUI::CControlUI::SendParentMessage	(	UINT	message,
		WPARAM	wp,
		LPARAM	lp ) const

◆ SendToAllChilds()

void BUI::CControlUI::SendToAllChilds	(	UINT	message,
		WPARAM	wp,
		LPARAM	lp )

将消息传递给每一个子控件响应

◆ SendToManager()

BOOL BUI::CControlUI::SendToManager	(	UINT	message,
		WPARAM	wp = 0,
		LPARAM	lp = 0 )

◆ SetAdaptMinText()

void BUI::CControlUI::SetAdaptMinText ( const BeString & str )

布局最小适应文本

◆ SetBkShowTiming()

void BUI::CControlUI::SetBkShowTiming ( ShowModel mode )

背景绘制时机

◆ SetBlurSize()

void BUI::CControlUI::SetBlurSize ( UINT size )

设置高斯模糊尺寸

参数

size 模糊半径

◆ SetBorderShowTiming()

void BUI::CControlUI::SetBorderShowTiming ( ShowModel mode )

边框绘制时机

◆ SetCaptureCtl()

void BUI::CControlUI::SetCaptureCtl ( )

捕获鼠标

◆ SetClipZoom()

void BUI::CControlUI::SetClipZoom	(	int	x,
		int	y,
		int	w,
		int	h )

设置控件可视裁剪区域。约束控件的显示区域

◆ SetCommitTarget()

void BUI::CControlUI::SetCommitTarget ( ICommitTarget * obj )

设置数据提交对象

◆ SetControlColorsStyle()

void BUI::CControlUI::SetControlColorsStyle	(	ColorSceneType	type,
		GBrushArray	colors )

设置颜色外观

◆ SetControlMouseCursor()

void BUI::CControlUI::SetControlMouseCursor ( CursorMouse id )

设置控件的鼠标光标

◆ SetControlNotes()

void BUI::CControlUI::SetControlNotes ( const BeString & str )

设置控件注释信息

◆ SetControlText()

void BUI::CControlUI::SetControlText	(	BeString	str,
		BOOL	is_refresh = FALSE )

设置文本

◆ SetControlTextByNumber()

void BUI::CControlUI::SetControlTextByNumber	(	double	value,
		int	precision,
		BOOL	remoe_last_zero )

以数值设置文本

参数

value	: 值
precision	: 小数点后的精度
remoe_last_zero	: 是否去除小数点后0后缀

◆ SetControlValueText()

virtual void BUI::CControlUI::SetControlValueText ( const BeString & str )

virtual

设置控件所表达的数据的文本，比如复选框的状态("0"/"1"),方便上层统一操作

被 BUI::CButtonSwitchImageUI, BUI::CCheckBoxUI, BUI::CComboBaseUI, BUI::CDateTimeUI, BUI::CEditGPSLocationUI, BUI::CEditSpinBoxUI, BUI::CEditTextUI , 以及 BUI::CListBoxUI 重载.

◆ SetDrawStyleWithFourCode()

void BUI::CControlUI::SetDrawStyleWithFourCode ( LPCTSTR draw_style )

设置控件绘制的风格样式，同一种控件的表现样式可以有多种。输入值只有前四位字符有效。一个控件表现形式在实际中不会很多。不用整形的目的是增强可读性

参数

draw_style 类型由四个ASCII字符的组合。

◆ SetEventHandler()

void BUI::CControlUI::SetEventHandler ( IEventHandler * hander )

设置事件处理对象

◆ SetFocus()

void BUI::CControlUI::SetFocus ( )

取得焦点和HWND焦点不要混淆，这是不一样的东西，只是函数名称我为了好记住

◆ SetFont()

void BUI::CControlUI::SetFont ( GFont * font )

设置字体

◆ SetFontSize()

void BUI::CControlUI::SetFontSize ( int height )

设置字体大小

◆ SetHeight()

void BUI::CControlUI::SetHeight ( int h )

设置控件高度

◆ SetLauoutInfo()

void BUI::CControlUI::SetLauoutInfo	(	ILayout *	parent,
		int	w,
		int	h,
		LayoutMode	mw,
		LayoutMode	mh )

◆ SetMouseCursor()

BOOL BUI::CControlUI::SetMouseCursor ( CursorMouse id )

protected

设置系统光标

◆ SetParent()

void BUI::CControlUI::SetParent ( CControlUI * parent )

设置父控件

◆ SetPopTipUI()

void BUI::CControlUI::SetPopTipUI ( const std::shared_ptr< PopControlInfo > & pop_info )

设置弹出pop显示ui

◆ SetPositionX()

void BUI::CControlUI::SetPositionX ( int x )

设置控件x坐标

◆ SetPositionXY()

void BUI::CControlUI::SetPositionXY	(	int	x,
		int	y )

设置控件(x,y)坐标

◆ SetPositionY()

void BUI::CControlUI::SetPositionY ( int y )

设置控件y坐标

◆ SetRoundRadiusValues()

void BUI::CControlUI::SetRoundRadiusValues ( const CNumberValue radius[8] )

设置矩形圆角

◆ SetShadowText()

void BUI::CControlUI::SetShadowText	(	int	dx,
		int	dy,
		int	blur_x,
		int	blur_y,
		const GColor &	color )

设置文本阴影

◆ SetShortCut()

void BUI::CControlUI::SetShortCut ( int virtual_key )

◆ SetShortCutCtrlCode()

void BUI::CControlUI::SetShortCutCtrlCode ( UBYTE virtual_key )

◆ SetSkinModule()

void BUI::CControlUI::SetSkinModule ( const BeString & skin_group )

设置皮肤id

◆ SetSkinStyle()

void BUI::CControlUI::SetSkinStyle ( const BeString & skin_name )

设置皮肤id

◆ SetStrokeSize()

void BUI::CControlUI::SetStrokeSize ( UINT size )

设置轮廓线宽

◆ SetToolTipText() [1/2]

void BUI::CControlUI::SetToolTipText ( const BeString & tip_str )

设置提示文本

◆ SetToolTipText() [2/2]

void BUI::CControlUI::SetToolTipText ( LPCTSTR tip_text )

设置提示文本

◆ SetVarName()

void BUI::CControlUI::SetVarName ( const BeString & str )

设置控件唯一标识符

◆ SetVarNameA()

void BUI::CControlUI::SetVarNameA ( const char * var_name )

设置控件唯一标识符

◆ SetVarNameW()

void BUI::CControlUI::SetVarNameW ( const WCHAR * varname )

设置控件唯一标识符

◆ SetVisibleWhenMouseHover()

void BUI::CControlUI::SetVisibleWhenMouseHover ( BOOL open )

设置只在鼠标悬停时，显示控件

◆ SetWidth()

void BUI::CControlUI::SetWidth ( int w )

设置控件宽度

◆ ShellAttribute()

virtual void BUI::CControlUI::ShellAttribute	(	const BeString &	str_name,
		const BeString &	str_value )

virtual

命令控制和属性设置接口

szName属性	szText语法格式
text 设置控件文本	text="按钮"
note 设置控件注释信息	note="这是一个用于控制XXX的按钮"
fill 背景颜色	fill="normal:0x343434;light:rgb(20,20,20,255);selected:hsv(25,100,100,255);disable:#343434"
fill-text 文本颜色	fill-text="normal:0x343434;light:rgb(20,20,20,255);selected:hsv(25,100,100,255);disable:#343434"
stroke 边框颜色	stroke="normal:0x343434;light:rgb(20,20,20,255);selected:hsv(25,100,100,255);disable:#343434"
stroke-size 边框画笔大小	stroke-size="2"
border-radius 控件圆角(和CSS格式一致)	border-radius="10"
	border-radius="rx:10;ry:10"
font 设置字体	font="name"
blur-size 高斯模糊尺寸	blur-size="30"
border-show 边框显示属性	取值 never:不显示, always:显示, highlight:鼠标悬停时显示, focus:控件获得焦点时显示
back-show 背景显示属性	取值 never:不显示, always:显示, highlight:鼠标悬停时显示, focus:控件获得焦点时显示
shadow 阴影特效	shadow="dx,dy,blur_x,blur_y,spread_x,spread_y,colo,inset" shadow="3,3, 2,2, 0,0, rgb(0,0,0,100),inset;3,3, 2,2, 0,0,rgb(0,0,0,100),inset"
visible 可见性	取值 true/false
enable 可用性/禁用状态	取值 true/false
tooltip 提示文本	tooltip="这是一段鼠标悬停时的提示文本内容"
num_id 控件整数ID	num_id="101"
skin-id 皮肤唯一标识符,查找皮肤时的关键key	skin-id="skin_white"
cursor 光标	取值：arrow,ibeam,hand,wait,cross,uparrow,size,icon,sizenwse,sizenesw,sizewe,sizens,sizeall,no
accesskey 响应快捷键	accesskey="ctrl+B"
refresh 刷新控件	true/false
margin-hot 热点时的边缘膨胀尺寸	margin="2,2,2,2" 左上右下的顺序
control-flags 功能标志位	"-"前缀代表删除属性如 control-flags="AllowFocusWhenClick,-SupportTabKey"
	StaticState :静态控件，不响应键盘和鼠标
	AllowFocusWhenClick :用户单击时可控件获取焦点
	AllowCaptureMouseWhenClick :用户左键时，捕获鼠标
	SupportTabKey :支持tab获得焦点
	AutoSeatLayout :自动占位布局
	ShowMarginOnCaptureMouse :鼠标悬停时，显示边缘膨胀特效
	ShowMarginOnFocus :获得焦点时，显示边缘膨胀特效
	RoundRadiusDrawLine :控件圆角
	RoundRadiusParl: 控件Parl四边形
	HideWndWhenClick :单击时隐藏窗口
	forcelayout:控件尺寸变化时，强制重新计算布局位置
	use-par-color-fg : 控件前景颜色，使用父控件的
	use-par-color-border : 控件边框颜色，使用父控件的
	use-par-color-text : 控件文本颜色，使用父控件的
	DisableTheme :禁用主题颜色
	ZOverSpeedup :控件多到影响性能时启用启用后会用算法计算控件的遮盖信息，快速定位
	StorageUserSetting :自动存储控件内容到全局配置文件
	FixedOnView : 控件坐标原点改变时，此控件固定不变
	OnlyMoveInParent : 仅在父控件视窗下移动
	TopMostWhenClick : 点击容器或者容器内的子控件时，将自己置顶。
datafile 数据文件	datafile="文件路径"

被 BUI::CAutoMoveContainUI, BUI::CBinaryBoxUI, BUI::CButtonImageUI, BUI::CButtonMenuUI, BUI::CButtonNodeUI, BUI::CButtonPolygonUI, BUI::CButtonSVGUI, BUI::CButtonSwitchImageUI, BUI::CButtonSysUI, BUI::CButtonTextureUI, BUI::CButtonUI, BUI::CChartViewUI, BUI::CChatEditUI, BUI::CCheckBoxUI, BUI::CColorBarUI, BUI::CColorPickerUI, BUI::CComboBaseUI, BUI::CComboColorPickerUI, BUI::CComboDateRangeUI, BUI::CComboDateUI, BUI::CComboListUI, BUI::CContainerUI, BUI::CContainLayoutUI, BUI::CContainMenuUI, BUI::CContainOptionUI, BUI::CContainScrollSyncUI, BUI::CContainTabUI, BUI::CContainTitleUI, BUI::CDateTimeUI, BUI::CDateUI, BUI::CDigitLcdUI, BUI::CEditCombinationUI, BUI::CEditFrameUI, BUI::CEditGPSLocationUI, BUI::CEditIPAddressUI, BUI::CEditKeyBoardUI, BUI::CEditRichUI, BUI::CEditSpinBoxUI, BUI::CEditTextUI, BUI::CGIFViewUI, BUI::CImageViewListUI, BUI::CImageViewUI, BUI::CIndicatorLightUI, BUI::CLabelMultiStyleUI, BUI::CLabelUI, BUI::CLayoutArrowContainUI, BUI::CLineArrowUI, BUI::CLineUI, BUI::CListBoxUI, BUI::CLottieUI, BUI::CNodeEditorUI, BUI::COptionUI, BUI::CPaginationUI, BUI::CPopControlUI, BUI::CProgressBarUI, BUI::CScrollAreaUI, BUI::CScrollBarUI, BUI::CSliderUI, BUI::CSplitBarUI, BUI::CStaticMarkUI, BUI::CTableViewUI, BUI::CTreeListUI, BUI::CTreeTableViewUI , 以及 BUI::CView3dUI 重载.

◆ ShellAttributeToChildControl()

BOOL BUI::CControlUI::ShellAttributeToChildControl	(	const BeString &	child_name,
		const BeString &	str_name,
		const BeString &	str_value )

◆ ShowControl()

void BUI::CControlUI::ShowControl	(	bool	is_show,
		bool	notify_layout = true )

显示虚拟窗口

◆ StrokeDashOffset()

float BUI::CControlUI::StrokeDashOffset ( ) const

Dash偏移

◆ TestOrder()

BOOL BUI::CControlUI::TestOrder ( ) const

判断是否被其他控件遮盖 TRUE 代表遮盖

◆ Text()

LPCTSTR BUI::CControlUI::Text ( ) const

获得文本

◆ TipHide()

void BUI::CControlUI::TipHide ( )

隐藏提示框

◆ TipTrack()

void BUI::CControlUI::TipTrack	(	int	x,
		int	y,
		LPCTSTR	text = NULL )

提示框显示位置 x, y 是相对窗口

◆ TranslateSyncMsg()

BOOL BUI::CControlUI::TranslateSyncMsg	(	UINT	message,
		WPARAM	wp,
		LPARAM	lp )

向上层转发同步消息

◆ TriggerAction()

void BUI::CControlUI::TriggerAction ( )

触发事件

◆ TriggerScript()

void BUI::CControlUI::TriggerScript ( )

执行脚本事件

◆ UpdateAdaptLayout()

void BUI::CControlUI::UpdateAdaptLayout ( ) const

更新adapt布局

◆ UpdateMarginStateFlag()

void BUI::CControlUI::UpdateMarginStateFlag ( )

protected

更新margin状态标志位

◆ ViewOrigin()

virtual POINT BUI::CControlUI::ViewOrigin ( ) const

virtual

坐标原点偏移量

重载 BUI::IControlUI .

◆ Width()

int BUI::CControlUI::Width ( ) const

获得控件宽度

类成员变量说明

◆ m_absord_uis

std::vector<std::shared_ptr<ILayout> > BUI::CControlUI::m_absord_uis

protected

◆ m_action

ActionList BUI::CControlUI::m_action

protected

◆ m_action_map

ActionTable BUI::CControlUI::m_action_map

protected

◆ m_anim_all

std::map<BeString, std::shared_ptr<GAnimateProperty> > BUI::CControlUI::m_anim_all

protected

◆ m_anim_trans

GAnimateTransformVector BUI::CControlUI::m_anim_trans

protected

◆ m_anima_fill_opacity

std::shared_ptr<GAnimatePropertyValue<float> > BUI::CControlUI::m_anima_fill_opacity

protected

◆ m_anima_moving

std::shared_ptr<GAnimatePropertyValue<float> > BUI::CControlUI::m_anima_moving

protected

◆ m_anima_stroke_dash

std::shared_ptr<GAnimatePropertyValue<float> > BUI::CControlUI::m_anima_stroke_dash

protected

◆ m_anima_stroke_opacity

std::shared_ptr<GAnimatePropertyValue<float> > BUI::CControlUI::m_anima_stroke_opacity

protected

◆ m_bk_show_timing

UBYTE BUI::CControlUI::m_bk_show_timing

ShowModel OnNever 从不绘制 OnAlways 一直绘制 OnHighLight 高亮时绘制

◆ m_blur_size

UINT BUI::CControlUI::m_blur_size

◆ m_border_show_timing

UBYTE BUI::CControlUI::m_border_show_timing

◆ m_border_size

UINT BUI::CControlUI::m_border_size

protected

◆ m_bru_fill

GBrushArray BUI::CControlUI::m_bru_fill

protected

◆ m_bru_stroke

GBrushArray BUI::CControlUI::m_bru_stroke

protected

◆ m_bru_text

GBrushArray BUI::CControlUI::m_bru_text

protected

◆ m_capture_save_file

BeString BUI::CControlUI::m_capture_save_file

protected

◆ m_cmd_ast

syntax_info* BUI::CControlUI::m_cmd_ast

protected

◆ m_commit_target

ICommitTarget* BUI::CControlUI::m_commit_target

protected

◆ m_cursor

CursorMouse BUI::CControlUI::m_cursor

protected

◆ m_draw_style

FourCode BUI::CControlUI::m_draw_style

protected

◆ m_enable

UBYTE BUI::CControlUI::m_enable

全部为0代表可用 bit0 表示控件自身的可用状态 bit1 表示父控件的禁用状态 bit2: nodecell禁用状态

◆ m_event_handler

IEventHandler* BUI::CControlUI::m_event_handler

protected

◆ m_first_child

CControlUI* BUI::CControlUI::m_first_child

◆ m_flags_ctrl

uint64_t BUI::CControlUI::m_flags_ctrl

protected

◆ m_font

GFont* BUI::CControlUI::m_font

protected

◆ m_hit_flag

UBYTE BUI::CControlUI::m_hit_flag

protected

◆ m_int_id

UINT BUI::CControlUI::m_int_id

◆ m_kb_event

ActionKeyboardMap* BUI::CControlUI::m_kb_event

protected

◆ m_key_down

UBYTE BUI::CControlUI::m_key_down

protected

◆ m_last_child

CControlUI* BUI::CControlUI::m_last_child

◆ m_layout

ILayout* BUI::CControlUI::m_layout

protected

◆ m_link_anim

LinkPtr BUI::CControlUI::m_link_anim

◆ m_link_for_cell

LinkControl BUI::CControlUI::m_link_for_cell

◆ m_link_gc

LinkControl BUI::CControlUI::m_link_gc

◆ m_link_moving

LinkActionNode BUI::CControlUI::m_link_moving

◆ m_link_pop_ui

LinkPtr BUI::CControlUI::m_link_pop_ui

◆ m_locationinfo

Location BUI::CControlUI::m_locationinfo

protected

◆ m_manager

IManageHandler* BUI::CControlUI::m_manager

◆ m_margin_on_hover

CNumberValue* BUI::CControlUI::m_margin_on_hover

protected

◆ m_name

BeString BUI::CControlUI::m_name

◆ m_name_skin_module

BeString BUI::CControlUI::m_name_skin_module

protected

◆ m_name_skin_style

BeString BUI::CControlUI::m_name_skin_style

protected

◆ m_next_sibling

CControlUI* BUI::CControlUI::m_next_sibling

◆ m_parent

CControlUI* BUI::CControlUI::m_parent

◆ m_pen_type

PenType BUI::CControlUI::m_pen_type

protected

◆ m_point_origin

POINT BUI::CControlUI::m_point_origin

protected

◆ m_pop_ui_info

std::shared_ptr<PopControlInfo> BUI::CControlUI::m_pop_ui_info

protected

◆ m_prev_sibling

CControlUI* BUI::CControlUI::m_prev_sibling

◆ m_rect_begin_track

RECT BUI::CControlUI::m_rect_begin_track

protected

◆ m_rect_clip

RECT BUI::CControlUI::m_rect_clip

protected

◆ m_rect_pos

RECT BUI::CControlUI::m_rect_pos

◆ m_round_radius

CNumberValue* BUI::CControlUI::m_round_radius

protected

◆ m_script_code

BeStringA BUI::CControlUI::m_script_code

protected

◆ m_script_val

BeStringA BUI::CControlUI::m_script_val

protected

◆ m_shadow_contain

GShadowContain BUI::CControlUI::m_shadow_contain

protected

◆ m_shadow_text

ShadowInfo* BUI::CControlUI::m_shadow_text

protected

◆ m_sig_policy

ST_Policy BUI::CControlUI::m_sig_policy

protected

◆ m_text

BeString BUI::CControlUI::m_text

protected

◆ m_text_min_adapter

BeString BUI::CControlUI::m_text_min_adapter

protected

◆ m_text_notes

BeString BUI::CControlUI::m_text_notes

protected

◆ m_text_poptips

BeString BUI::CControlUI::m_text_poptips

protected

◆ m_visible

UBYTE BUI::CControlUI::m_visible

全部为0代表可见 bit0: 表示控件自身的可视状态 bit1: 表示父控件的可视状态 bit2: 表示鼠标进入时才有可视状态

类

Public 成员函数

静态 Public 成员函数

Public 属性

Protected 成员函数

静态 Protected 成员函数

Protected 属性

详细描述

构造及析构函数说明

◆ CControlUI()

◆ ~CControlUI()

成员函数说明

◆ Activate()

◆ AddAbsordLayout()

◆ AddAnimate()

◆ AdjustLayoutControlSize()

◆ AnimateTransform()

◆ AutoAdaptSize()

◆ BackOpacity()

◆ BindAction()

◆ BlurSize()

◆ BorderOpacity()

◆ BoxLayoutMgr()

◆ BringBottomMost()

◆ BringTopMost()

◆ ChangeManager()

◆ ChangeParent()

◆ ChangeThemeColors()

◆ ChangeUIToNodeLink()

◆ ClearAction()

◆ ClientToHWNDScreen()

◆ Clone()

◆ CloneAttribute()

◆ ConvertShortCutCodeToText()

◆ Create() [1/2]

◆ Create() [2/2]

◆ DelAbsordLayout()

◆ DoChangeThemeColors()

◆ DoPaint()

◆ DoPaintBackGround()

◆ DoPaintBorder()

◆ DoPaintFinished()

◆ DoPaintGL()

◆ DoPaintShadow()

◆ DoShortCut()

◆ EnableBorderAdjustFlag()

◆ EnableControl()

◆ EnableNodeFlagControl()

◆ EnableShortCut()

◆ EventHandler()

◆ FindAllControl()

◆ FindAllControlByName()

◆ FindChildControlByHandler()

◆ FindControlByName()

◆ FindTabFocusControl()

◆ FirstChild()

◆ GetActionKeyboard()

◆ GetActionTable()

◆ GetAttchLayout()

◆ GetAttributeNames()

◆ GetClientPoint()

◆ GetControlClientRect()

◆ GetControlColorsStyle()

◆ GetControlFlags()

◆ GetControlNotes()

◆ GetControlRect()

◆ GetControlScreenRect()

◆ GetControlText()

◆ GetControlTextNumber()

◆ GetControlValueText()

◆ GetDragPos()

◆ GetFont()

◆ GetLayoutViewRect()

◆ GetManagerUI()

◆ GetMarginAreaRect()

◆ GetOppositePosition()

◆ GetPaintStatus()

◆ GetParent()

◆ GetParentOnTopMost()

◆ GetParentViewPoint()
